1-1825059-3
Manufacturer:
TE Connectivity
Mfr.Part #:
1-1825059-3
Datasheet:
Description:

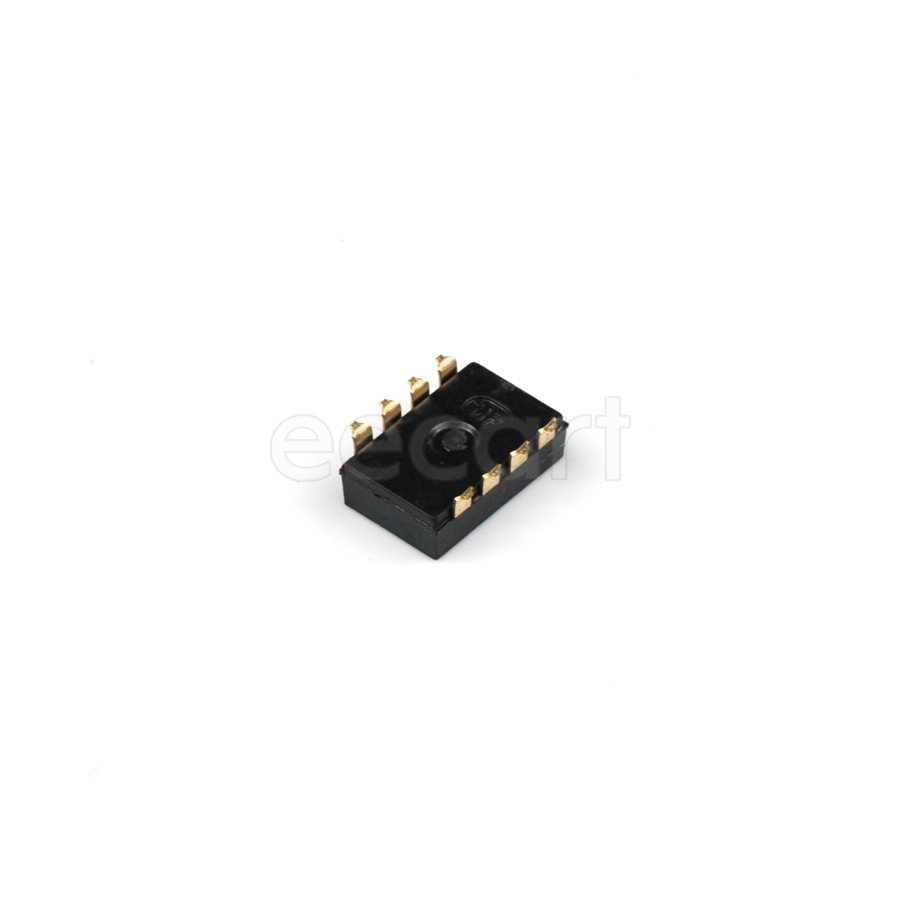

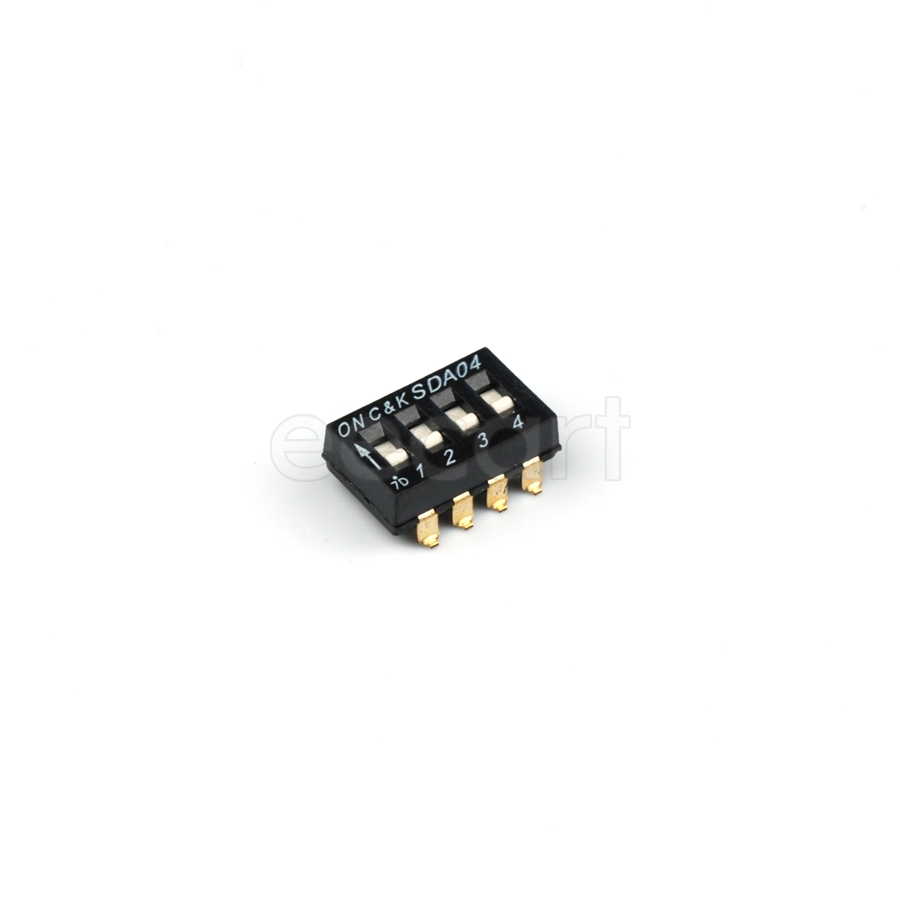

DIP Switches SMD/SMT SPST Number of Positions:4 Current Rating:100 mA Slide Switch
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 12.14 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Height | 3.5052 mm |
| Circuit Type | SPST |
| Depth | 9.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Nickel |
| Contact Material(Contact Finish) | Gold |
| Pitch | 2.54 mm |
| Type | Switch |
| Terminal Pitch | 2.54 mm |
| Current Rating | 100 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 24 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| ELV | Compliant |
| Actuator Length | 0 m |
| Throw Configuration | SPST |
| Number of Positions | 4 |
| Housing Material | Polyphenylene |
| Contact Resistance | 50 mΩ |
| Electrical Life | 1 kcycles |
| Actuator Material | Polyamide |
| Contact Current Rating | 100 mA |
| Housing Color | Black |
| Actuator Type | Slide |
| Washable | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Packaging | Tube |
Stock: 40299
Distributors
pcbx
pcbxUnit Price$0.63855
Ext.Price$0.63855
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.63855 | $0.63855 |
| 10 | $0.54307 | $5.43070 |
| 25 | $0.51115 | $12.77875 |
| 50 | $0.48111 | $24.05550 |
| 100 | $0.45283 | $45.28300 |
| 300 | $0.42622 | $127.86600 |
| 500 | $0.40117 | $200.58500 |
| 1000 | $0.37759 | $377.59000 |
| 3000 | $0.35540 | $1066.20000 |
| 5000 | $0.33451 | $1672.55000 |
